ANTI-SEISMIC CONNECTION between tees

INNOVATIVE SEISMIC CONNECTIONS

description download

TO CONNECT TEES, SLABS, SPANDRELS

the evolution of species

IMPALCATI    RIGIDI    SENZA    CAPPA?
CON   VECTOR  SI   PUÒ

Two types of connections are available: Vector and Mini-V, for thick and thin slabs:

elementi vector

MONTAGGIO DELLA CONNESSIONE

HOW IT LOOKS LIKE:

ASPETTO DELLA CONNESSIONE

SPERIMENTAL TEST IN CALIFORNIA

DOWNLOAD MOVIE ABOUT EARTHQUAKE TEST (17.3MB)

 SAN DIEGO UNIVERSITY

Almost 3 mil. $ have been spent to assemble a building with 3 floors with tees and hollowcore connected with VECTOR™, with and without cast in place, on a platform to simulate an earthquake of magnitude 7.1 to verify the connection resisteance:

I T   W O R K S  !

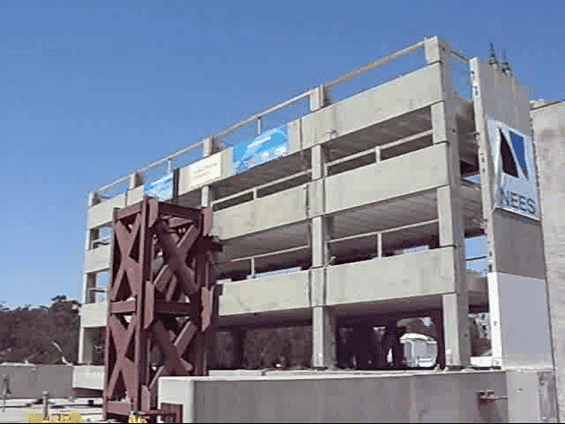

 EDIFICIO PER IL TEST SISMICO SPERIMANTALE

SPERIMENTAL LABORATORY TEST

DOWNLOAD MOVIE

UNIVERSITY OF MILWAUKEE

Cyclic Horizontal Shear with Tension

The connection can resist seismic forces warping for cyclic loads in a ductile way, and if needed the behaviour of the floor is stiff diaphragm.

TEST PER CARICHI CICLICI ORIZZONTALI A TAGLIO

OUT OF PLANE SHEAR TEST

The connection guarantee a uniform deformation of the floor.

TEST  TAGLIO VERTICALE

Monotonic Tension

The connection can resist wind and seismic forces. It can also di absorb local stress due to thermal variation without generating tensions and breaking in the concrete.

TEST  TRAZIONE ORIZZONTALE

RESISTANT DUCTILE INVISIBLE TESTED



RENDERING VECTOR NEW

 rendering del vector visto annegato nei tegoli
