Custom Programs

PREF-FAST

CUSTOM-DESIGNED PROGRAMS ACCORDING TO YOUR MOULDS

DESIGN, VERIFICATION, DRAWING AND ESTIMATION

PROGRAMMI PERSONALIZZATI

THE FASTEST!

Within seconds you can verify all Rules changing from a formwork to another, changing loads and dimensions, adding and removing cast in place.

According to Eurocodice 2 UNI EN 1992-1-1 version 2005 (and according to Italian NTC 2018 + DM2008 + Tensioni Ammissibili)

WORKSHOP DRAWING WITH QUANTITIES

scheda di produzione boomerangscheda di produzione boomerang

Parametric Rebars - Stirrups - Embeds – Database of lifting hooks

FIRE VERIFICATION  GERBER SUPPORT

SEISMIC VERIFICATION  SNOW-WIND LOADS

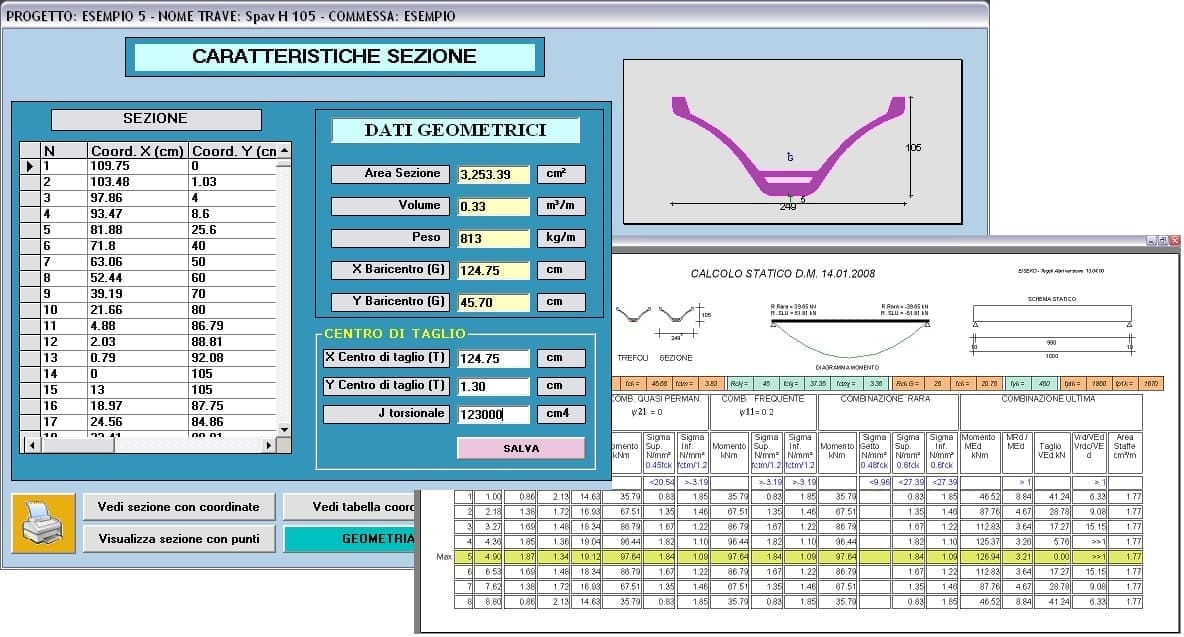

FOR ANY KIND OF BEAMS:



WINGSPANS

CALCULATION OF THE ELEMENTS IN VARIOUS CONFIGURATIONS (drawn near, central with infill elements, edge elements with infill elements)
Check of the loads on wings
Input of loads on beam using  m2
WORKSHOP DRAWING WITH QUANTITIES


PROGRAMMA CALCOLO TEGOLO ALARE

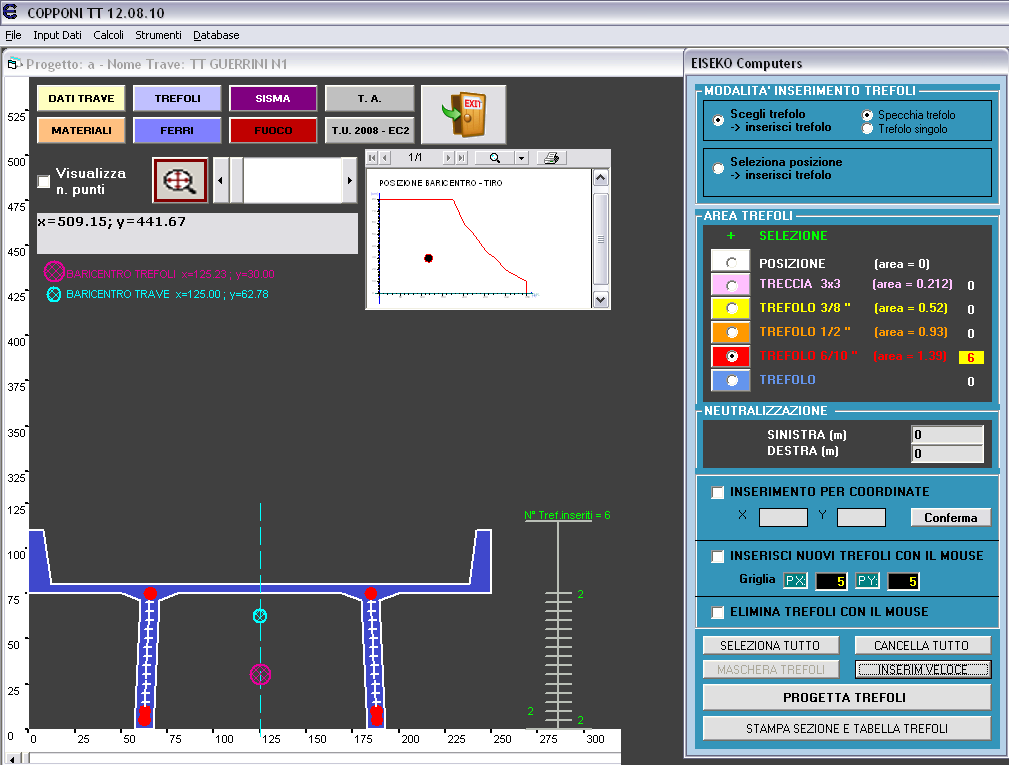

 DOUBLE TEES

CALCULATION OF THE ELEMENTS IN VARIOUS CONFIGURATIONS (drawn near, central with infill elements, edge elements with infill elements)
Calculation of the single section WITH A HOLE, different cast in place height, cut of the superior slab (left-right)
Input of loads on beam using  m2
Automatic lateral little walls with the different phases calculation
Check of maximum capacity of stand pulling track
Simplified selection of the section to use
WORKSHOP DRAWING WITH QUANTITIES


PROGRAMMA CALCOLO TEGOLI TT



ASYMMETRIC ELEMENTS - SHED

Automatic calculation of the torsional component of the loads, with the possibility to edit the eccentricity
Calculation of central beams and edge beams (with or without wind force)
Automatic shear center
Automatic geometrical characteristics
Asymmetrical Prestress verification with automatic calculation of torsion
Automatic verification of support with and without the Gerber support, considering torsion too.
Input of loads on beam using  m2


PROGRAMMA CALCOLO TRAVI SHED

trave shed

trave shed  trave shed  trave shed

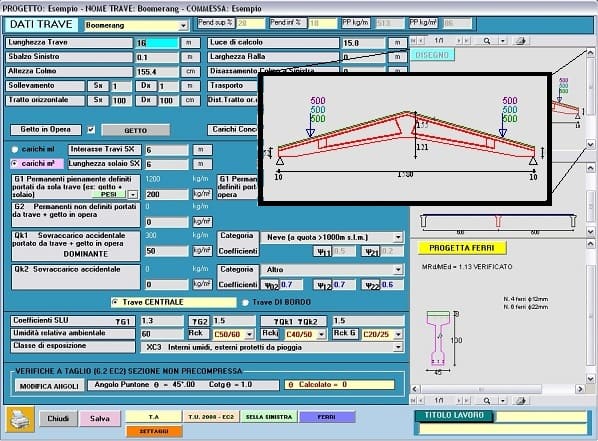

BOOMERANG

CALCULATION OF THE ELEMENTS IN VARIOUS CONFIGURATIONS
Editing of a database of the most used roof elements for the automatic calculation of G1, so that the user doesn’t need to look through weight tables each time

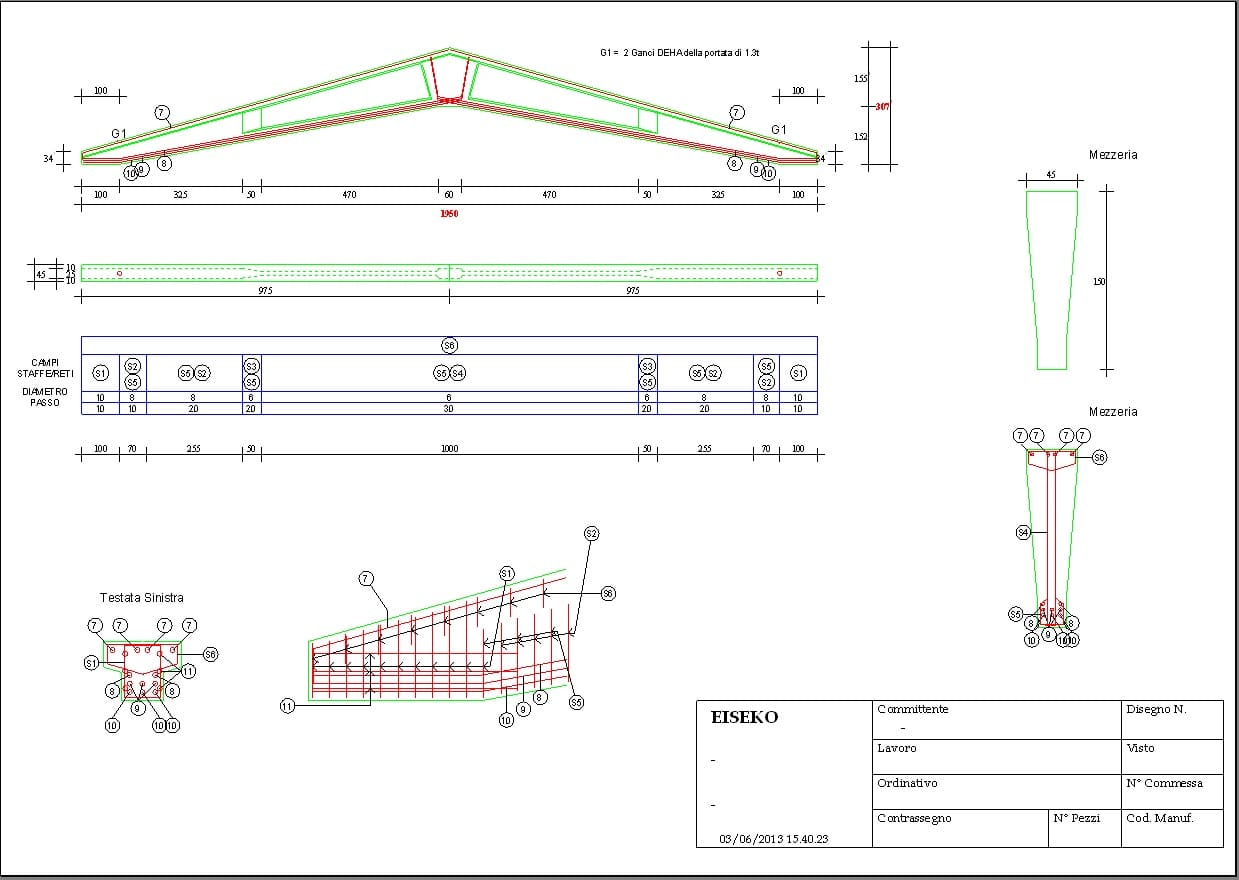

WORKSHOP DRAWING WITH QUANTITIES
Input of loads on beam using  m2
Simplified choice of the element
Superior peak flat
Asymmetric beams

PROGRAMMA CALCOLO BOOMERANG

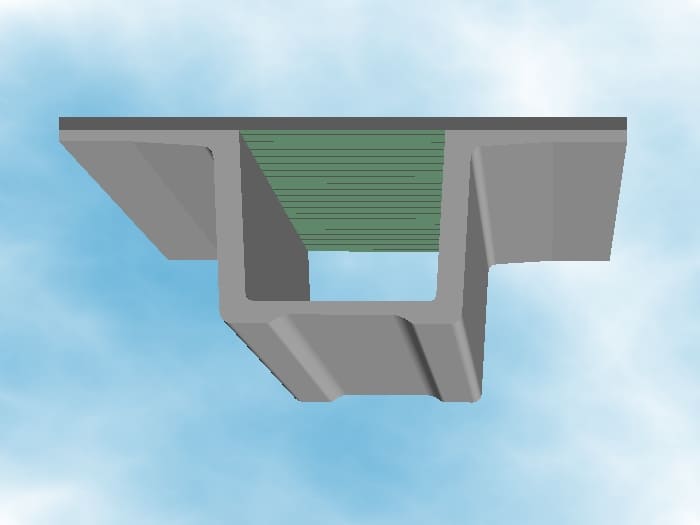

FLOOR BEAMS

Calculation of a single section with different cast in place height, cut of the superior slab (left-right)
Input of loads on beam using  m2
Simplified selection of the section to use
WORKSHOP DRAWING WITH QUANTITIES

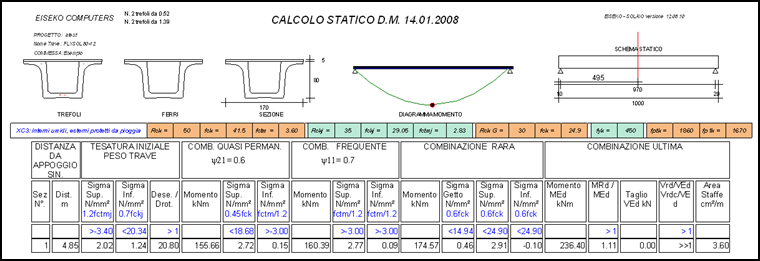

PROGRAMMA CALCOLO SOLAI

calcolo solaio

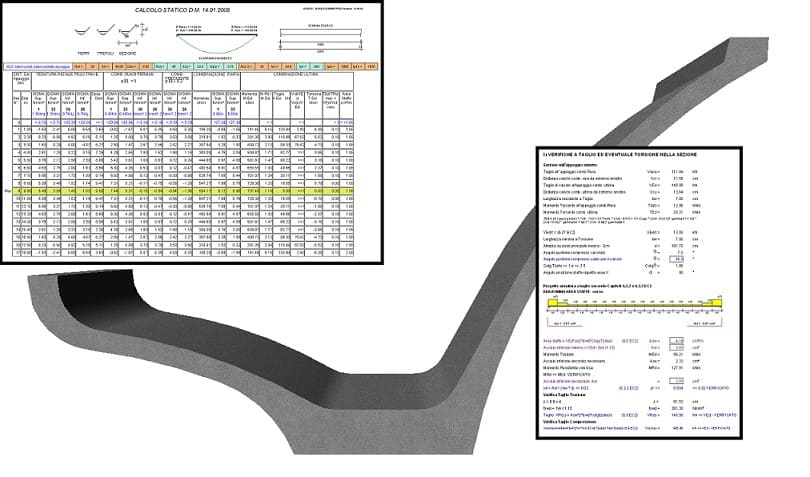

H - Y - GENERIC BEAMS

COVERING   BEAMS  OF ANY SHAPE

CALCULATION OF THE ELEMENTS IN VARIOUS CONFIGURATIONS (drawn near, central with infill elements, edge elements with infill elements)
Input of loads on beam using  m2
Simplified selection of the section to use
WORKSHOP DRAWING WITH QUANTITIES

PROGRAMMA DI CALCOLO PER TRAVI A Y O TRAVI AD H  calcolo trave a Y  calcolo trave a Y

EAVES

Input of loads on beam using  m2
Simplified selection of the section to use

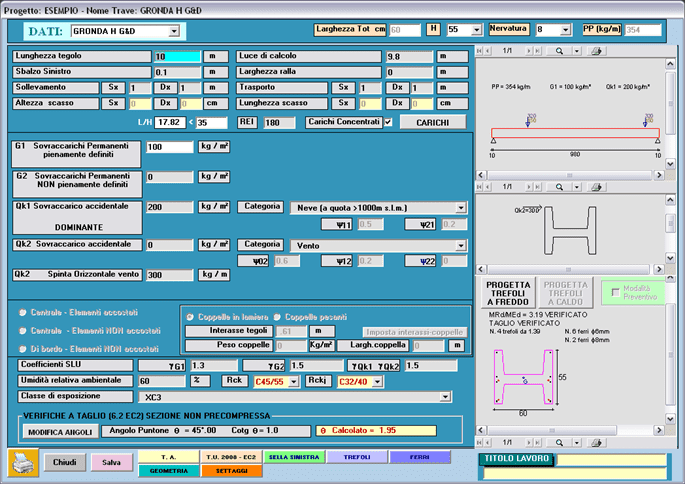

software calcolo travi di gronda

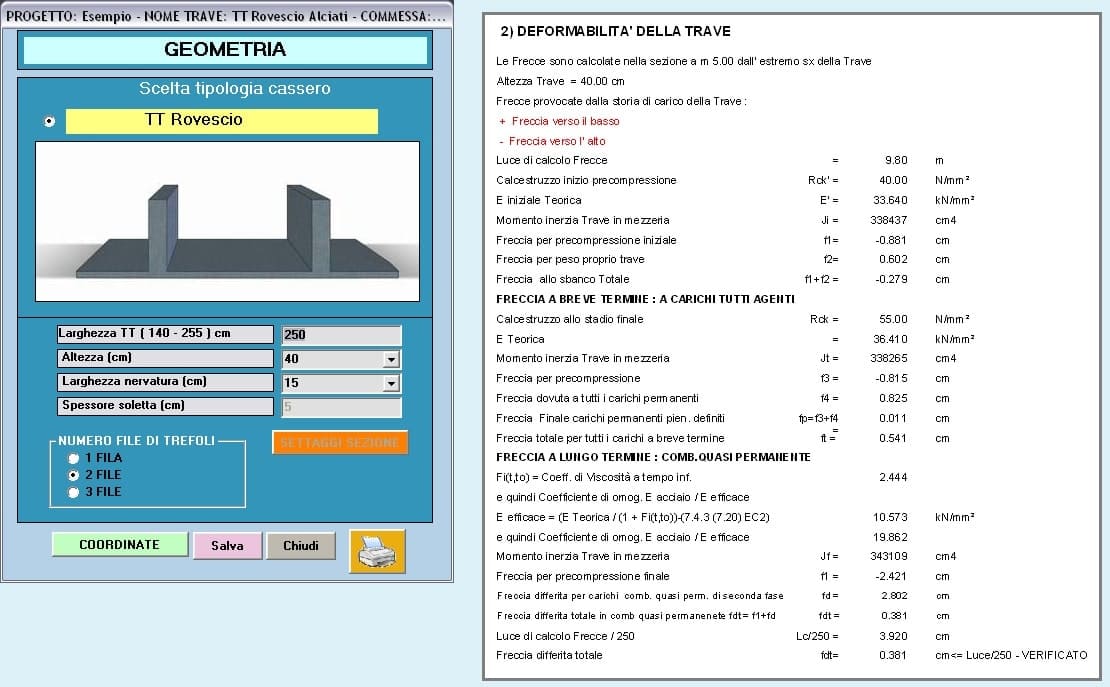

INVERTED DOUBLE TEES

Input of loads on beam using  m2
Simplified selection of the section to use
WORKSHOP DRAWING WITH QUANTITIES
CALCULATION OF THE ELEMENTS IN VARIOUS CONFIGURATIONS (drawn near, central with infill elements, edge elements with infill elements)

PROGRAMMA CALCOLO TEGOLI TT ROVESCIO



BEAMS WITH NON LINEAR SLOPE

GENERAL COVERING BEAMS with NON LINEAR variation of height

CALCULATION OF THE ELEMENTS IN VARIOUS CONFIGURATIONS (central or edge elements)
Input of loads on beam using  m2
Simplified selection of the section to use

calcolo coppella c.a.


DOUBLE SLOPE BEAMS

Custom program for the calculation of DOUBLE SLOPES with or without the inferior slab

CALCULATION OF THE ELEMENTS IN VARIOUS CONFIGURATIONS
Calculation of the half beam
Superior peak flat
Asymmetric beams
Creation of a database of the most used roof elements for the automatic calculation of G1, so that the user doesn’t need to look through weight tables each time
Input of loads on beam using  m2
Simplified choice of the element
WORKSHOP DRAWING WITH QUANTITIES

Calcolo e disegno di travi DOPPIE PENDENZE  Calcolo e disegno di travi DOPPIE PENDENZE

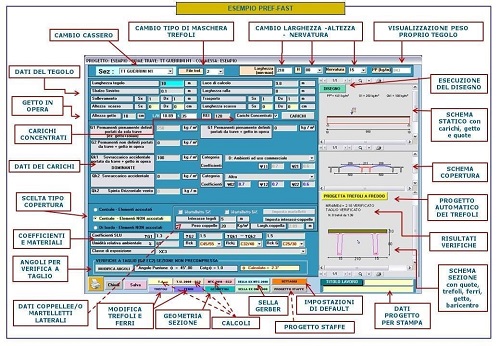

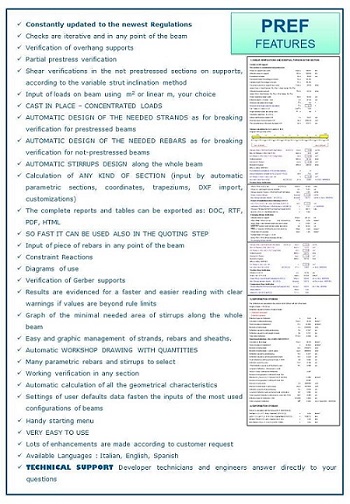

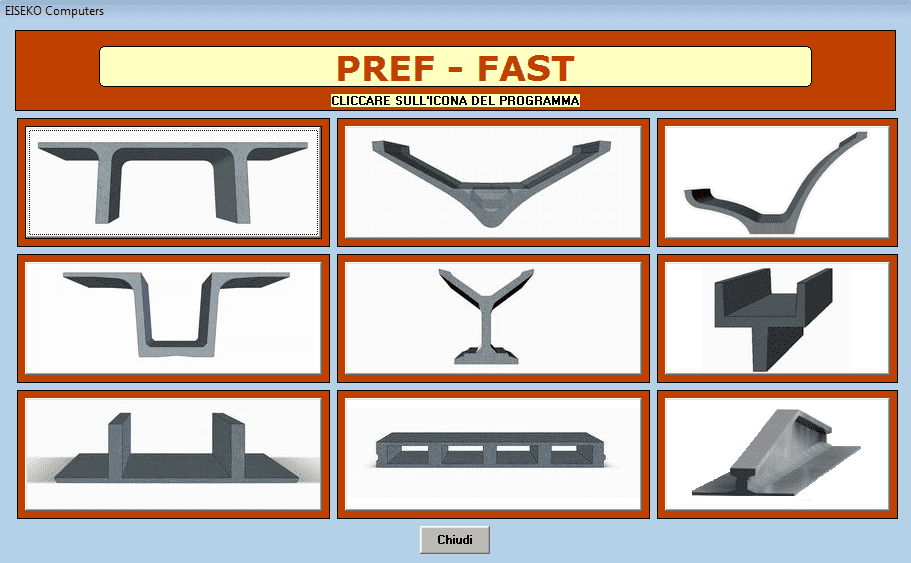

PREF-FAST FEATURES

pref-fast

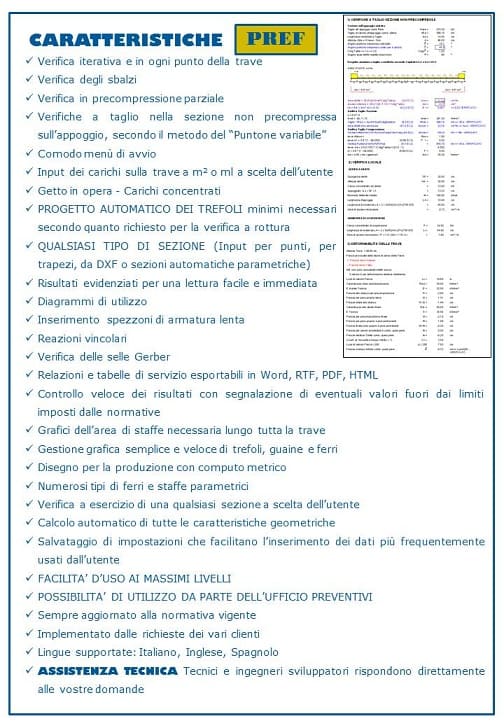

CARATTERISTICHE PROGRAMMI EISEKO

download brochure
